Gesture IR Frame Touch Screen Overlay Kits Smartboard Multitouch 65inch

Place of Origin GUANG DONG, CHINA
Brand Name ITATOUCH
Certification CE, FCC, ROHS, ISO
Model Number IR Frame
Minimum Order Quantity 1Pieces
Price USD49.00 ~ USD390.00 / Pieces
Packaging Details Carton box
Delivery Time 5~15 working days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 5000pieces/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 65inch IR Touch Frame Overlay Kits For Interactive Whiteboard Technology Infrared Multi Touch Screen Overlay Kits
Frame Size 32", 43", 50", 55'',65",,75", 85", 96", 98", 110", 120" Software Free Whtieboard Software For School Classroom Education
Touch Points 10/40 Touch Points Finger Touch Or Pen Touch,Infrared Touch Material Aluminum Alloy Frame, USB Cable
Interface Type USB,Serial Resolution 4096*4096
Operating System Compatiable With WIN7/10,Android Application Indoor,Teaching & Meeting,Koisk,Information,ATM
High Light

Gesture IR Frame Touch Screen

,

IR Frame Touch Screen Smartboard

,

IR Touch Screen Overlay Kits

Leave a Message
Product Description
65inch Infrared Touch Overlays Multitouch Frame IR Technology Kits For Smartboard


Interactive Infrared Touch Frame Overlay Features:

  • 9th generation infrared multi-touch technology
  • High-density infrared light tube integrated PCB, the touch sensor is accurate and smooth 3mm/1.5mm writing.
  • Support multiple user 10~20points touch
  • Size: 32", 43", 49"/50", 55". 65", 75", 85"/86", 98", 110", 120", 125" ...
  • USB / Series data cable
  • Tempered glass option if needed.


PCBS / CUSTOMIZED SUPPORT

Usually, the default of Interactive touch screen frame kits has 10points touch sensors, which means 10 users could write at the same time. Widely for education and business application.


PRDOUCT SPECIFICATIONS:
Infrared SKD Touch Screen Overlay Kits

hardware Special Features
Gesture recognition
Technology
Infrared
Touch Point
10 touch
Cursor Speed
220 dot/s
Display ratio
4:3 16:10
Resolution
32768 x 32768
Positioning Accuracy
<2mm
Connecting Port
USB 2.0 USB 1.1 USB 3.0
View Angle
Horizontal 170°, vertical 160°
Operating System
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8.1,Windows 10, Linux, Mac, Android
Power Supply
USB power supply DC 4.6V- 5.0V <1W ( 100mA at 5V)
Working Condition
Indoor or Outdoor
Storage
Temperature: -30°C~60°C Humidity: 0%~95%
Operation
Temperature: -10°C~45°C Humidity: 10%~90%
Installation
Wall mounted, cabinets, mobile stand (optional)


PRODUCT DETAILS:


Full Sizes options: 32", 43", 46". 50", 55", 65", 70", 75", 80". 86", 98", 110", 120", ... 150"
or MORE LARGE SIZES, CUSTOMIZED.

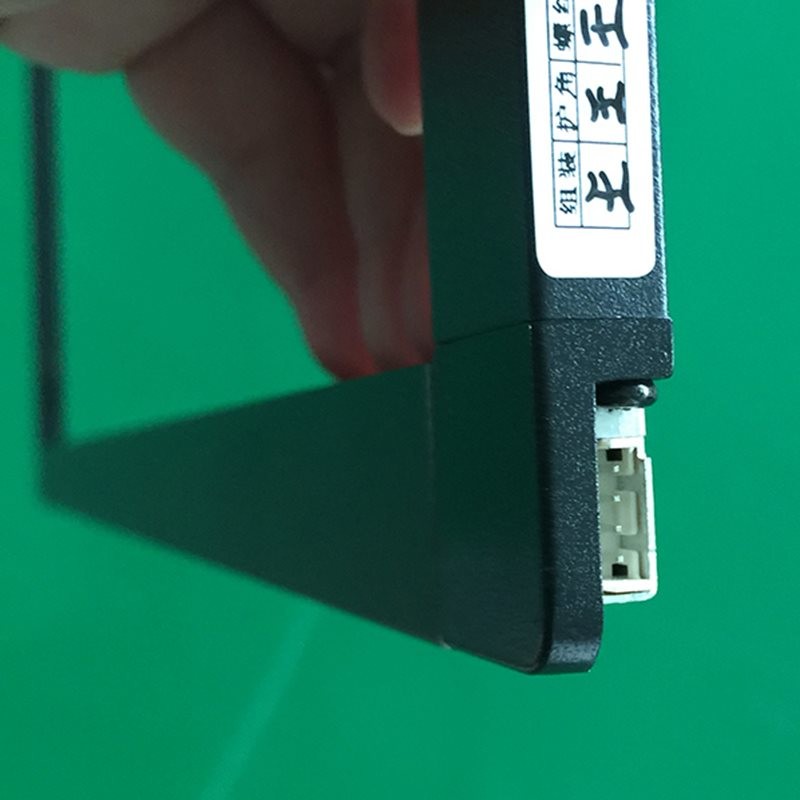

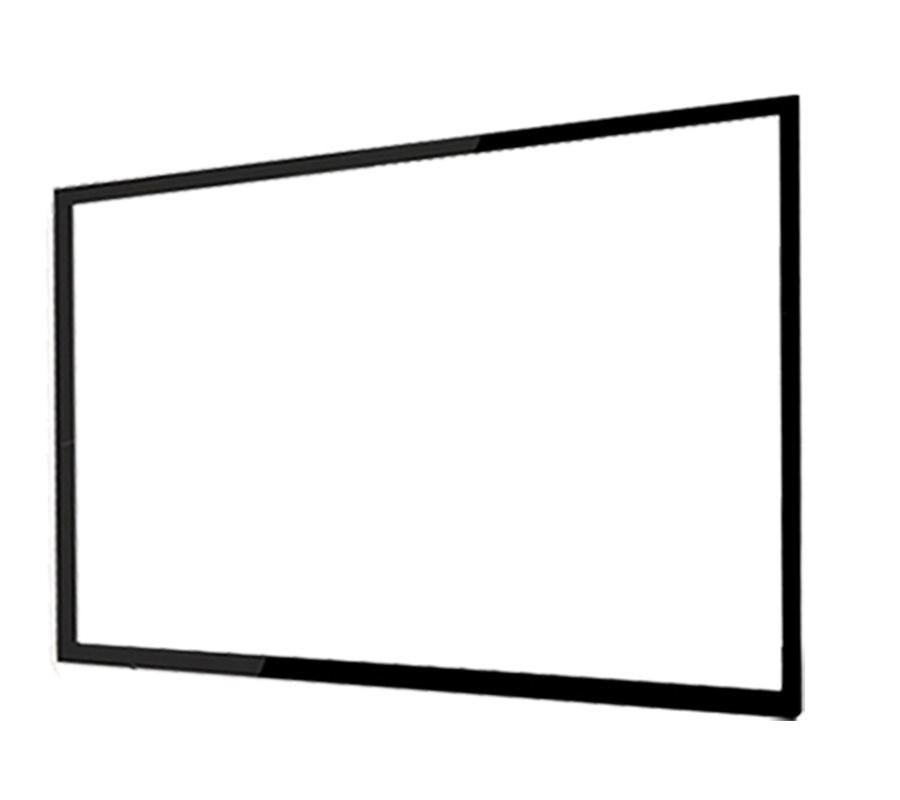

Gesture IR Frame Touch Screen Overlay Kits Smartboard Multitouch 65inch 0

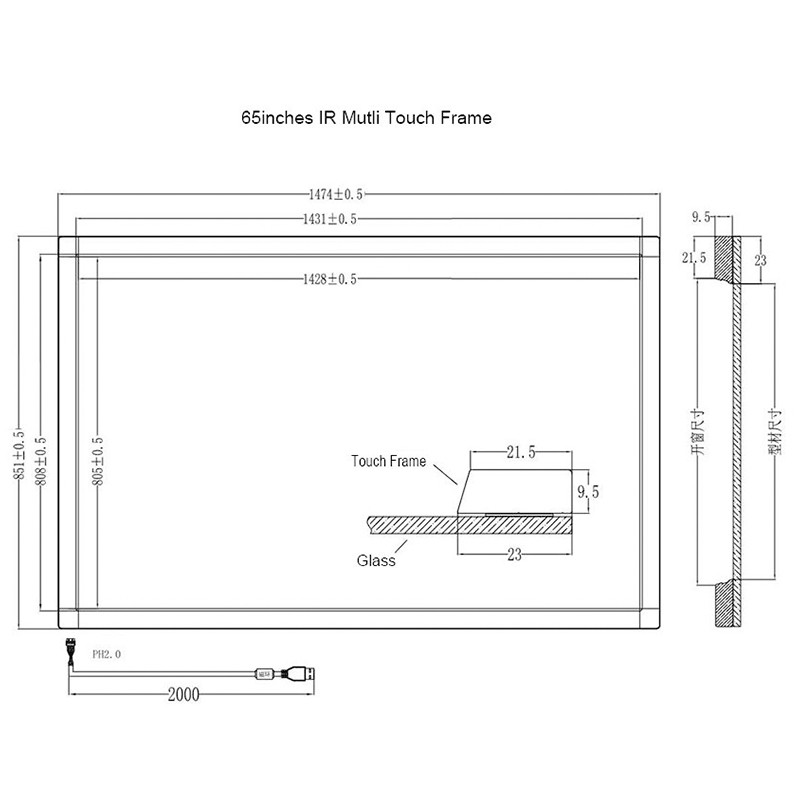

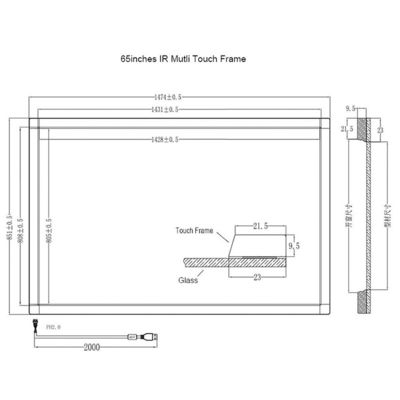

65inch IR frame size chart
Gesture IR Frame Touch Screen Overlay Kits Smartboard Multitouch 65inch 1

It is Free Driver for Windows OS, Android OS. Intelligence Gesture Recognize, include zoom in /out ... etc.
Whiteboard software for Windows OS opton if need.

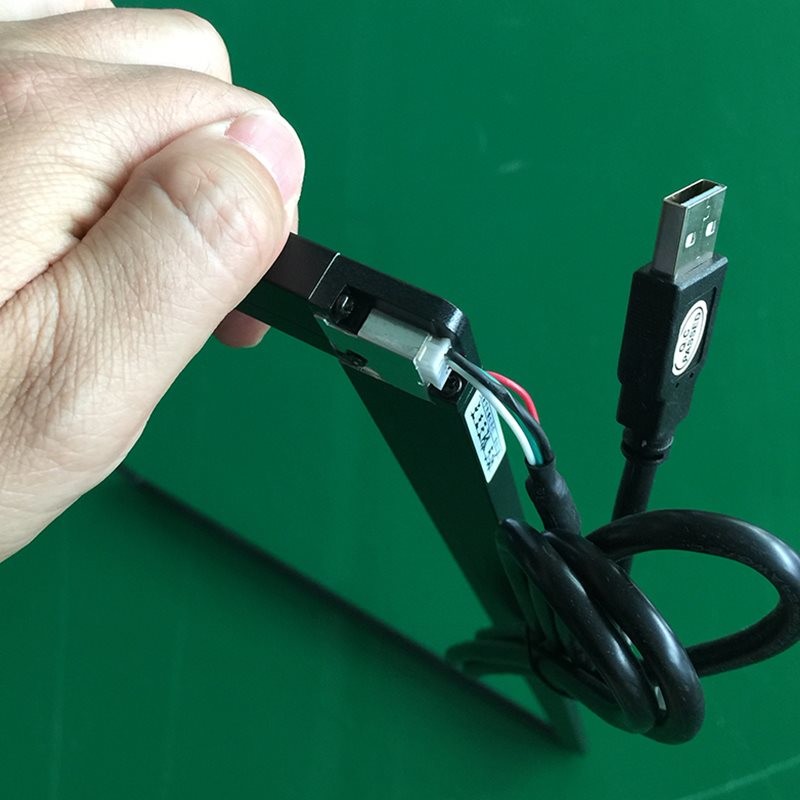

The PCB board has infrared LED tube light, USB interfaces, aluminum alloy frame
Infrared 10point, 20point, 32point touch option.

Gesture IR Frame Touch Screen Overlay Kits Smartboard Multitouch 65inch 2Gesture IR Frame Touch Screen Overlay Kits Smartboard Multitouch 65inch 3Gesture IR Frame Touch Screen Overlay Kits Smartboard Multitouch 65inch 4Gesture IR Frame Touch Screen Overlay Kits Smartboard Multitouch 65inch 5

Installation Instruction of Infrared SKD touch screen frame for tv monitors


Gesture IR Frame Touch Screen Overlay Kits Smartboard Multitouch 65inch 6Gesture IR Frame Touch Screen Overlay Kits Smartboard Multitouch 65inch 7
High accurate infrared IR LED beadsfull sizes of infrared touch frame



1. SAMPLES (<5pcs) of Infrared touch screen frame, to save shipment cost, willl send the un-assembled one if clients required. and clearly mark A, B, C, D on each side corner, user can assemble it per the marks one by one.

2. BULKS (>10pcs) , we will offer the assembled oen of IR frame panel for our clients, packed it by carton. clients can directly use it after received.

Gesture IR Frame Touch Screen Overlay Kits Smartboard Multitouch 65inch 8

Acessories of IR Touch Frame

Usually the default one exclude the 4mm termper glass board if no special requirements.

The accessories include USB cable, data cables, cover corner ... etc.
