Outdoor Digital Signage Wall Mounted Advertising Player Waterproof IP55 IP65 IP66

Place of Origin Shenzhen China
Brand Name ODM, OEM
Certification CE, FCC, ROHS, ISO certifications
Minimum Order Quantity 1pieces
Price negatiable
Packaging Details carton
Delivery Time 7-25days
Payment Terms L/C, T/T, Western Union
Supply Ability 5000pieces/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Outdoor Digital Signage Wall Mounted Advertising Player Waterproof IP55 IP65 IP66 Screen Panel D-LED / IPS Panel
Display Ratio 16:9 Resolution 1920*1080
Contrast Ratio  1200:1 Protection Grade IP55 / IP65 / IP66 (option)
Shell Case 1.5mm SGCC Galvanized Steel Sheet, The Inner Layer Is Sprayed With Zinc-rich Primer, And The Surface Is Sprayed With Aksu Outdoor Plastic Powder For Protection, Lifetime>10years. Electronic Control System Leakage Protection,Timing Power Supply,Brightness Control,Lightning Protection
High Light

SGCC Wall Mounted Advertising Player


IP65 Wall Mounted Advertising Player


IP55 Digital Signage Player

Leave a Message
Product Description

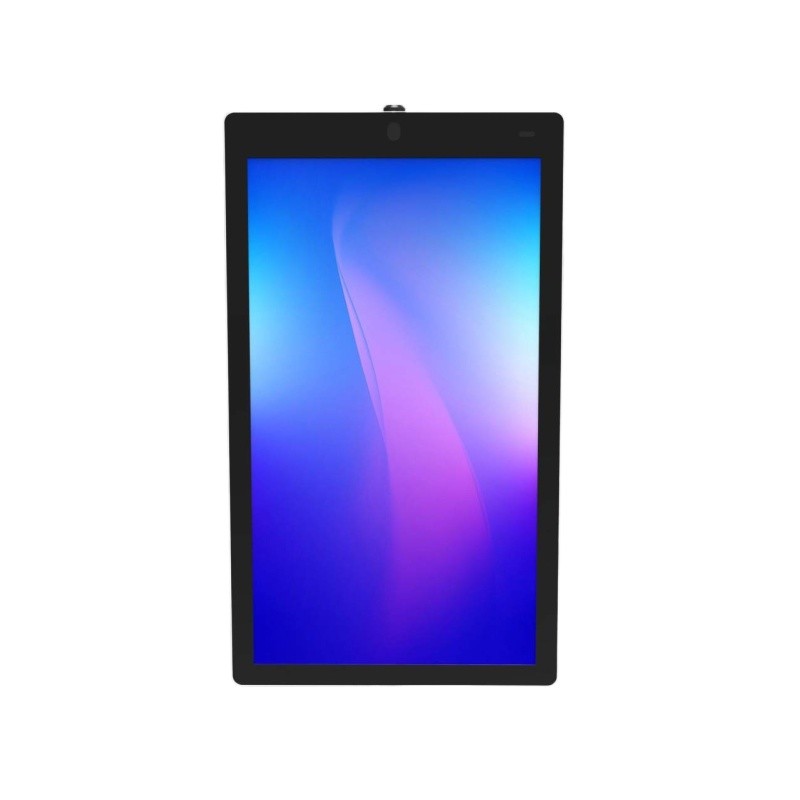

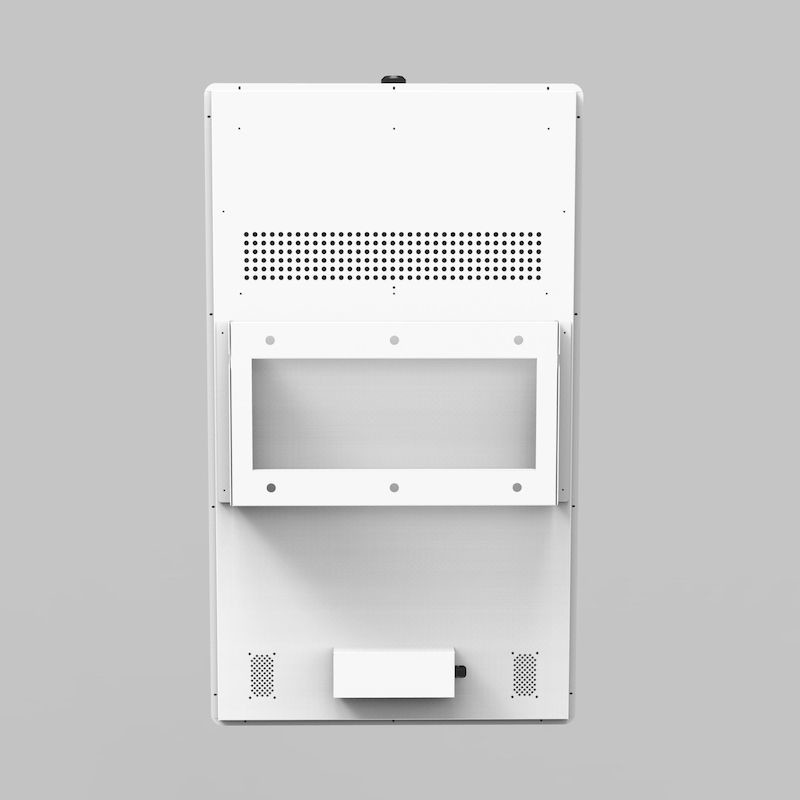

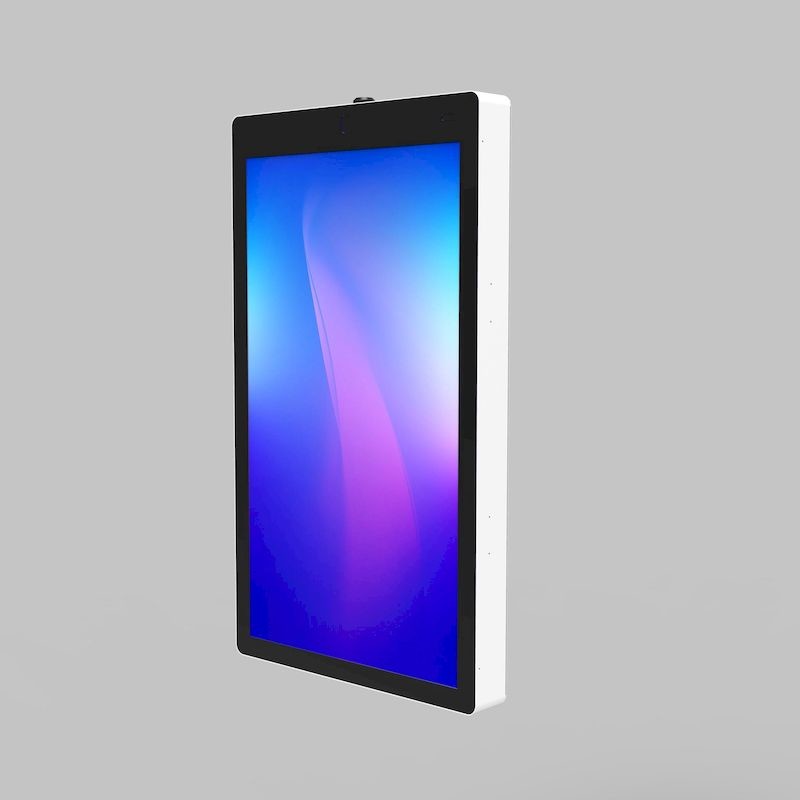

Outdoor Digital Signage Wall Mounted Advertising Player Waterproof IP55 IP65 IP66


The waterproof digital signage is widely used for outdoor advertising, wayfinds, self-services,guidance...etc

Outdoor Digital Signage Wall Mounted Advertising Player Waterproof IP55 IP65 IP66 0


Specification of Digital Signage for Advertising


szie 32inch 43inch 49inch 55inch 65inch 75inch 86inch 98inch



Screen Panel


Outdoor dedicated high-brightness LCD screen, LED direct backlight

visible in sunlight; automatic photosensitive probe, adjust screen brightness according to ambient light, save energy and reduce light pollution.

Display area 697*392mm 941*530mm 1074*604mm 1209*680mm 1428*803mm 1650*928mm 1895*1065mm 2153*1214mm
Display ratio 16:9 16:9 16:9 16:9 16:9 16:9 16:9 16:9
Resolution 1920*1080 1920*1080/3840*2160 1920*1080/3840*2160 1920*1080/3840*2160 3840*2160 3840*2160 3840*2160 3840*2160
Brightness 2000cd/㎡ 2000cd/㎡ 2000cd/㎡ 2000cd/㎡ 2000cd/㎡ 2000cd/㎡ 2000cd/㎡ 2000cd/㎡
Contrast 1200:1 1200:1 1200:1 1200:1 1200:1 1200:1 1200:1 1200:1
View angle 178°(hotrizontal and vertical)
Protective glass


5mm tempered glass


6mm tempered glass


8mm tempered glass

Explosion-proof glass tempered glass, when the glass is damaged by external force, the fragments will form obtuse-angled small particles similar to honeycomb, which is not easy to cause serious harm to the human body. The impact strength of tempered glass is 3 to 5 times that of ordinary glass, and the bending strength is 3 to 5 times that of ordinary glass.
Networking Ethernet port, wifi, (4G networking is optional)
Touch (optional)
Capacitive G+G touch touch deviation ≤ 2mm, power consumption 1.5W, free drive, transmission mode USB2.0, better visual effect.
Nano touch also known as capacitive G+F touch, touch deviation ≤ 2mm, power consumption 1.5W, drive-free, transmission mode USB2.0
Android OS

CPU: RK3288 2GDDR+8G FLASH USB*4, UART*4, operating system Android 5.1

Interface USB2.0*4 RJ45*

Degree of protection



Installation method


Wall hanging

Working parameters
Video interface



audio interface



Brightness control


Automatic photosensitive system

Temperature control


Automatic temperature sensing Stepless speed regulation smart fan

Operating temperature


-30°C to +50°C

Working humidity


5% to 90%

Power supply 220V, 230W 220V, 300W 220V,380W 220V, 400W 220V, 550W 220V, 1200W 220V, 1300W 220V, 2180W
Electric control system
Leakage protection


Leakage protection switch, leakage protection, overcurrent and overvoltage protection.

Timing power supply


Microcomputer timing switch, timing control machine start and stop in different time periods.

Lightning protection level


Lightning protection device, lightning protection level C, to prevent instantaneous lightning strikes.


Power supply brand Taiwan MEAN WELL industrial-grade power supply, stable and reliable power supply.
Heat dissipation system
temperature control The integrated temperature control of the intelligent fan can meet the outdoor environment of -30-+50 degrees, and the display screen will not turn black, and the whole machine can work normally.
Fan Imported axial flow fan, supporting fan speed control board, automatic temperature sensing, automatic adjustment of fan speed, energy saving and power saving, and prolonging the service life of the fan.



Outdoor Digital Signage Wall Mounted Advertising Player Waterproof IP55 IP65 IP66 1

1. Display module

(1) It adopts industrial-grade high-reliability modular design, which is simple and convenient to maintain, and has complete protection measures.

(2) High resolution, high contrast, high brightness, better express the details.

(3) Automatically eliminating afterimages, anti-ultraviolet, heat insulation against sunlight, automatic light-sensing green energy-saving protection for long-term use of the LCD screen.

(4) Black level extension and self-adaptation, which can enhance the depth of the image.

(5) Adopting industrial-grade LCD screen, the video image is brighter and the three-dimensional effect is stronger.

(6) 16.7M colors, the picture is more natural, and the delicate picture is truly free of tailing.

(7) Intelligent temperature control, environmental protection and quietness, high reliability and good stability, especially suitable for working in harsh environments.

(8) Ultra-long life, 7*24 hours of uninterrupted work, up to 60,000 hours or more.

2. Electrical parameters

(1) The shell material is all galvanized steel cabinet, the outer surface is imported metal paint, anti-magnetic, anti-static, imported waterproof material, the whole machine adopts IP55 waterproof, outdoor all-weather waterproof and dustproof, anti-theft, explosion-proof and other designs.

(2) Highly reliable electrical protection: leakage, overload, overvoltage protection, lightning protection device, over-temperature protection, etc.

(3) Audio: Dual-channel, stereo surround power amplifier system - 8 ohms and 2×10W.

(4) The working environment temperature design standard is +50°~-30°, and high-quality combined fans are used for cooling.

(5) Protective glass: 6-8mm tempered explosion-proof glass is used.

(6) Each system of the whole machine adopts the principle of modular design, sustainable and maintainable design.

(8) Light sensing and overheating protection system: The screen backlight adopts automatic ambient light sensing, real-time adjustment of the screen brightness can meet the clear image display under strong direct sunlight environment, and make the screen clear and no energy waste at night.

Outdoor Digital Signage Wall Mounted Advertising Player Waterproof IP55 IP65 IP66 2



Outdoor Digital Signage Wall Mounted Advertising Player Waterproof IP55 IP65 IP66 3
