Class Portable Visualizer Document Camera Digital CMOS Sensor

Place of Origin CHINA
Certification CE,ISO,FCC
Model Number K6
Minimum Order Quantity 1
Packaging Details carton
Supply Ability 2000pc/mon

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Document Visualizer Class Presenter Wifi 5G Lens CMOS, 8 Megapixel
Resolution 1700 TV Line In The Center, 1400-1600 TV Line Around Shot Range Take Full A3 Paper At The Vertical Distance From The Sensor Surface To The Document (lens Can Be Raised
Shot Type Courseware, Documents, Documents, Notes, Pictures, Magazines And Books, ID Cards, Three- Dimensional Objects, Etc Zoom Mode AF Auto Focus + MF Touch Focus On Demand
High Light

Class Visualizer Document Camera


Visualizer Document Camera Digital


Portable Document Camera CMOS

Leave a Message
Product Description

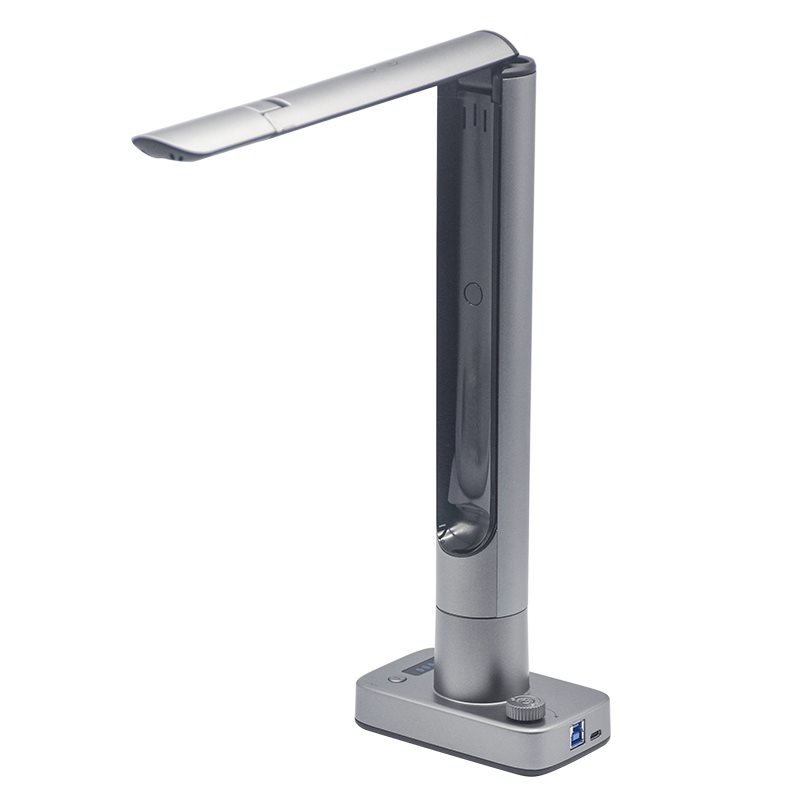

Teaching Scanner Portable Document Visualizer Camera Digital Class Presenter WIFI 3A Shot


portable wirless 5G wifi A3, A4 shot size document visualizer presenter scanner with wall mount box case, and CMOS, 8 megapixels, 1200 optical sensor

Specification of the K6 Visualizer class presenter


Model# K6

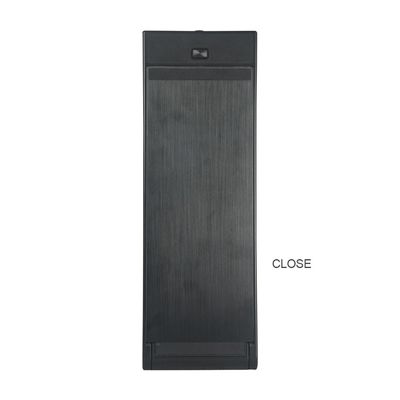

Construction Wall-mounted box with aluminum alloy material, without sharp edges and corner. the interfaces for the charger and USB cable inside the bottom, the foldable panel for the document placed.
Open method for box the top with the button to press opening with damping effect, and the top is equipped with an anti-theft mechanical lock
LENS CMOS, 8 megapixel
Resolution 1700 TV line in the center, 1400-1600 TV line around
Aperture and lens direction Fixed aperture, vertical down
Operating temperature and humidity -15℃~45℃;20%~90% RH
Shooting range Take full A3 paper at the vertical distance from the sensor surface to the document (lens can be raised)
Shooting type Courseware, documents, documents, notes, pictures, magazines and books, ID cards, three-dimensional objects, etc
zoom mode AF auto focus + MF touch focus on demand
Interface type USB 2.0 free driver
transmission mode USB wire & IFI5 wireless
Switch mode Dual modes free switch, no need close whiteboard software, intelligent auto-recognize image
Interactive button The base with the button, integrated the power on/off, shoot the image, and zoom in/out by rotating.
Charger mode the base with magnetic, put inside to charge immediately
Battery 1 set of LED light, power percentage and charge flashing indication (10% ~ 100%)
Battery Capacity Polymer cell 5600mAh; theoretical battery life 6-8 hours (depending on the environment).
Power Adapter Standard 5V ﹤ u 2.5A power adapter, it takes 4-5 hours to fully fill from 0-100%
working frequency 50Hz,support 60Hz
Light supplement mode touch switch(three sections of the light adjustment)
Video format MJPG/YUY2
Output frame rate of USB mode MJPG:3264×2448(15~20 frame ), 2592×1944(20frame), 2048×1536(20frame), 1920×1080(30frame), 1280×720(30frame)
YUY2(support android OS):3264×2448(2frame), 2592×1944(3frame), 640×480(30frame)
Output frame rate of WIFI 5G wireless MJPG:3264×2448(15~20frame), 2592×1944(20frame), 2048×1536(20frame), 1920×1080(30frame), 1280×720(30frame)
Exposure / white balance Power on auto exposure, white balance
Time of exposure 1~2S
Colorful 24bits
Rotation angle of cross arm Rotate up and down to 270 degrees, left and right to 180 degrees
USB Cable USB cable 5m (optional)
USB wireless network card Standard configuration : WiFi 5g wireless network card


ITATOUCH Wireless Intelligent Document Scanner integrated the high definition video camera and smart control management, and adopt 5.8G WIFI with USB internet adapter and magnetic charging method offer user free, easy teaching/presentation experience.
This visualizer directly connects with the interactive flat panel display or the computer of interactive whiteboard by USB wireless adapter or cable.

Class Portable Visualizer Document Camera Digital CMOS Sensor 0


portable wirless 5G wifi A3, A4 shot size document visualizer presenter scanner with wall mount box case, and CMOS, 8 megapixels, 1200 optical sensor

Class Portable Visualizer Document Camera Digital CMOS Sensor 1

Class Portable Visualizer Document Camera Digital CMOS Sensor 2

Hot Sellers Wireless 5G WIFI A3 & A4 Shot Size Document Visualizer Presenter Scanner




1). Alibaba Verified supplier by SGS Certification.
2). Offer patiently & various services - Brand, OEM | ODM | CUSTOMIZED.
3). Small MOQ 1pcs, Direct Factory Prices.
4). Quality complies with CE, FCC, ROHS, ISO certificates.
5). Our products and service have been gotten " Good | Very Good " reviews by above 99% of clients from more than 30 countries and areas.
