Digital Smart Interactive Whiteboard Flat Panel Infrared Android 11.0

Place of Origin Guangdong, China
Brand Name OEM BRAND
Certification CE,FCC,ROHS
Model Number M Series
Minimum Order Quantity 1piece
Price negotiable
Packaging Details carton+pallet+wood shelf
Delivery Time 7-30days
Payment Terms L/C, T/T, Western Union
Supply Ability 5000pieces/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Smart Board Interactive Panel Digital Whiteboard 20 Points Touchscreen Screen Panel D-LED Panel
Resolution 3840 X 2160 Touch Technology Infrared 20 Touch-point, 10point Writing
Touch Glass 4mm Tempered Glass With Anti-glared Treatment Android OS Android 11.0 OS
Lens Of Camera Built-in 13 Megapixels On The Top Of The Frame Foucs Auto-foucs, Plug Play
High Light

Digital Smart Interactive Whiteboard


Smart Interactive Whiteboard Android 11.0


Smart Interactive Flat Panel Infrared

Leave a Message
Product Description

Smart Board Interactive Panel Digital Whiteboard 20 Points Touchscreen Android 11.0 13MP Camera

With different sizes & frames and optional hardware types of equipment, the Interactive Smartboard multitouch screen Board Android 11.0 OS touch interactive whiteboard offers various solutions for education, conference and business presentation ... etc.



 Touchscreen Smart Boards Specification


Sizes 55inch 65inch 75inch 85/86inch 98”
Screen Panel Type D-LED D-LED D-LED D-LED LG D-LED
Resolution 3840*2160 3840*2160 3840*2160 3840 x 2160 3840 x 2160
Brightness (type) 350 cd/㎡ 350 cd/㎡ 400 cd/㎡ 350 cd/m2 nits (typ.) 500cd/m²(typ.)
Contrast 4000:1 4000:1 1200:1 1200:1 (typ.) 1300;1 (typ.)
Display Area 1209.6*680.4 mm 1428.5*803.5 mm 1649.66*927.94mm 1860.48 ×1046.52 2158.848*1214.352
Pixel (mm)(H/V) 0.21 x 0.63 0.372x 0.372 0.429 x 0.429 0.4935 x 0.4935 0.5622*0.5622mm
Display Rate 16:9 16:9 16:9 16:9 16:9
Reviewing Angle 178° 178° 178° 178° 178 °(H) / 178 °(V)
Colorful 10bit,10.7B 10bit,10.7B 10bit,10.7B 1.07B (10bit) 1.07B (10bit) (V)
Response time 8ms 6ms 6ms 8ms 5ms
Lifetime Above 50,000h Above 50,000h Above 50,000h 50,000 hrs (min.) 30,000 hrs (min.)
Touch Glass 4mm tempered glass / Anti-glared glass
Sound & Network System
Speaker 2*10W 2*10W 2*10W 2*10W 15W*2
Video Input/Output HDMI: Max. 3840X2160@60Hz, HDMI 1.4/2.0,HDCP 1.4/2.2
Audio PC/CVBS/Component Audio: Audio L/R input; Earphone/CVBS Output
Network Network: 10/100M auto-identification and DHCP
WIFI IEEE 802.11a/b/g/n/ac 2.4GHz/5GHz 2T2R WIFI
Bluetooth BT5.0
Android System
Android OS Andriod 11.0 OS Andriod 11.0 OS Andriod 11.0 OS Andriod 11.0 OS Andriod 11.0 OS
Android CPU 64-bit Quad-core ARM Cortex-A55 CPU, Max.1.9GHz; ARM Mali-G52 MP2 (2EE) GPU, 900MHz
Flash Nandi EMMC 32GB / 128GB 32GB / 128GB 32GB / 128GB 32GB / 128GB 32GB / 128GB
RAM DDR3 4GB / 8GB 4GB / 8GB 4GB / 8GB 4GB / 8GB 4GB / 8GB
Input Resolution 1920*1080/30HZ, 3840*2160/60HZ

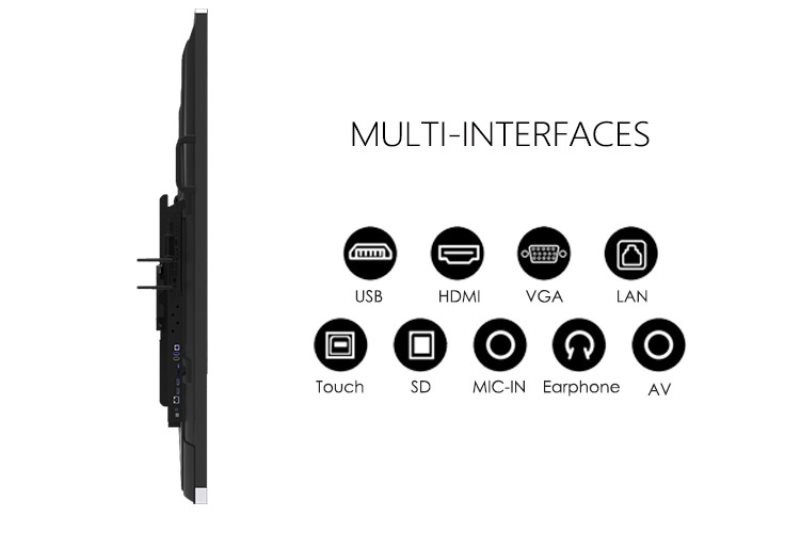

Front Frame 2*USB / 1* HDMI, 3*USB2.0/3.0, 1* TOUCH-USB , 1*Type-C
Input 1x COAX, 1xRS232, 1xMINI AV, 1xEARPHONE, 1xMIC IN, 1xRJ45 IN, 2x HDMI, 1x Android USB2.0,1x Public USB3.0, 1x TF CARD, 1*WIFI (2.4G/5.0G ) , 1*OPS PC SLOT 80PIN;
Output 1xMINI AV OUT, 1x RJ45 OUT, 1x TOUCH OUT,
Software under Andriod OS
Whiteboard App Edit, writing in two color with small/big pen nibs, eraser, scann share … etc.
Application Tools Annotation, Vote, Screenshot, Record, Timer, Child Lock, Energy, Camera … etc
Mirror Screens /E-Share Option Option Option Option Option
Google App Compatible Compatible Compatible Compatible Compatible
Video Camera & Microphone
Lens of Camera Built-in 12 Megapixels on the top of the frame, CMOS 1/2.3”,
Resolution MAX resolution: 3840*3024(4K)
Focus Auto-focus, plug play
Operation System Windows XP/ VISTA/ Win7/Win8/ Win10/Linux 2.6.24 & above Ubuntu, Mac OS 10.6 and above, Android 5.1 and above
Array Microphone Built-in 8-array Microphone.
Signal to noise ratio 74dB, Sensitivity -28±1db Sound Pickup distance: 10 meters;
AI smart chips, support Echo Cancellation, Beamforming, Environmental noise suppression , De-reverb, Sound source localization. Vocal Enhancement
Touch Technology
Touch Points Infrared 10-20 touch points, support 2, 6, 10, 20-touching for windows
Touch Method Infrared magnetical sensor, Finger or Pens, any objects
Accuration <2mm <2mm <2mm <2mm <2mm
Resolution 4096*4096/16384*16384/32768*32768


Description of the 65" IR Smart Interactive Boards

Android 9.0 OS with 4GB RAM and 32GB Storage, and built-in 13megpixels UHD 4K Camera and 8-array Microphone


 * Infrared Multi-Touch technology, Infrared 20 touch-point, 10points writing, fingers or any objects touch.
 * Support 5 fingers to shut off the screen & 2 fingers to direct the floating menu
 * Support sleep timing & shutdown memory channel function
 *  One-key child lock, U disk lock, apps setting function
 * Intelligence gestures recognize
 * Compatible with Windows, Mac, Linux & Android OS, Google App
 * Easy saving and sharing, just by scanning a code.

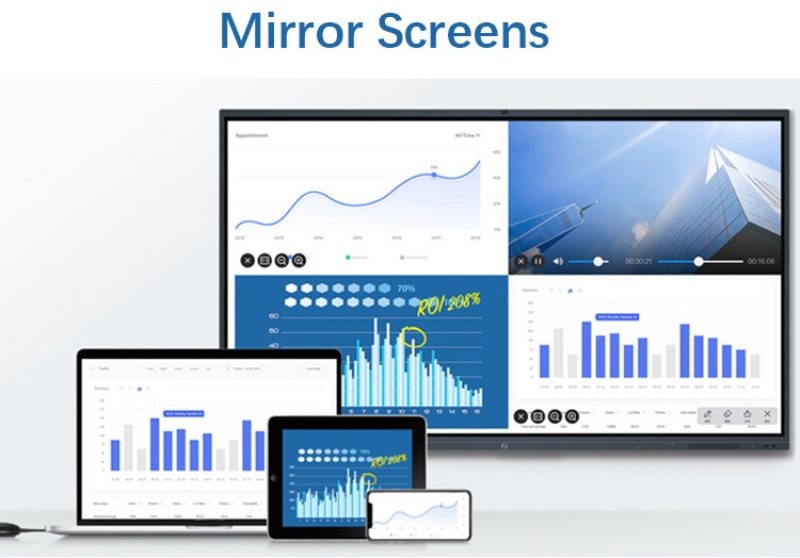

 * Mirror screen: real-time shared screen, make everything convenient and simple.
 * System: Android 9.0OS
Interactive Software
* Multiple Users Interactive Conference Software
* The Powerful Whiteboard Software
Saving and sharing are so easy, just one step to have them done!
Screen interaction makes everything so convenient!

Want to have a meeting? Distance is no longer a problem!

With the HD interactive smart display, your online meeting is the same as the on-site meeting!


Digital Smart Interactive Whiteboard Flat Panel Infrared Android 11.0 0


Dual OS, switch freely!


Digital Smart Interactive Whiteboard Flat Panel Infrared Android 11.0 1

More functions are in this one-The Smart Interactive Whiteboard!

Digital Smart Interactive Whiteboard Flat Panel Infrared Android 11.0 2

Intelligent gesture recognition,20 Touch


Digital Smart Interactive Whiteboard Flat Panel Infrared Android 11.0 3




Even though we are in different places, we share the same sun and moon, let's together to make a better world!


Q: How to buy the unit?

R: You can directly click the website links to send an inquiry, our salesman will offer you detailed documents, including the price and parameters within 24 hours.

Or Call to directly talk: +86 13582949978 / 86 18126530678.


Q: Do you have a CE certification for the IPS Touchscreen Interactive Whiteboard?

R: Yes, our products comply with the international standard, provide ROHS, ISO, FCC-Document, BIS offers,

And support commerce invoices prices per customer requirements for customs clearance.


Q: What is MOQ?

R: 1. 1pcs for Normal Products of Smart Boards, Interactive Whiteboard, Graphic Drawing Monitor, All in One PC, Mobile Stand, and Digital Signage

Dropping Shipping Service Support

The more order Qty place, the cheaper price offer.

2. 5pcs for the customized products of Interactive Touch Table or Kiosk … etc.

And support the sample order, but it will have some charges for design, and labor.


Q: What's the product lead time?

R: The lead time for a sample order is 7 days, and for an FCL order is 20 days.


Q: What's your warranty policy?

R: Usually it is 1 year for Interactive Touch Screen Display, but it can extend for several years (3/5 years) at few costs.

Normal Interactive Whiteboard: Three years


Q: How can I pay for you?

R: You can pay us by T/T, credit card, Western Union, PayPal, or Alibaba Trade Assurance; L/C is acceptable too.


Q: How to resolve the problems after I buy from you?

R: We have a professional sales team and technical team to support you, most importantly, our engineer will offer direct instruction online or onsite. You will find us when you need us.


R: Do you support OEM?

R: Certainly, SKD / OEM / ODM, Partial customized support, including printing your logo on the products and cartons.. etc.


Q: Can I customize the device?

R: Accept customization, just provide the size, requirements, or functions, and application to the salesman, then our designer will work out the sketch first for approval.


Q: Do you offer whiteboard software for Interactive Smart Boards / Interactive Flat Panels?

R: Yes, FREE OFFER smart whiteboard software for the interactive flat panel display (Android & Windows OS / PC ).


Q: Does Smartboards Interactive Touch Screen, and Interactive Whiteboard have wall-mounted accessories?

R: Yes, ITATOUCH device with wall-mounted accessories, the accessories including,

  • 2pcs touch pens
  • Remote control.
  • HDMI cable
  • Touch-USB cable,
  • Power cable,
  • Wall Mounted.

And the Mobile Stand / Electric Flip Lift Carts option.


Q: ITATOUCH install the Windows OS if the unit built-in PC? Such as the OPS PC for Interactive Smartboards/Interactive Flat Panels / Interactive Whiteboard, and Digital Display with PC embedded.

R: Yes, usually will install a trial version of WIN 7, WIN 10 OS.

OEM version of WINDOWS OS offers if the customer needs it, but it will need to charge per actual cost.


Q: Can I customize the device?

R: Accept customization, just provide the size, requirements, or functions, and application to the salesman, then our designer will work out the sketch first for approval.


Q: Can we print our logo/website/company name on products?

R: Yes, please advise the size and Pantone Code of the logo.


Q: Do you inspect the finished products?

R: Yes, each step of production and finished products must pass the QC department's standard inspection before shipping.
