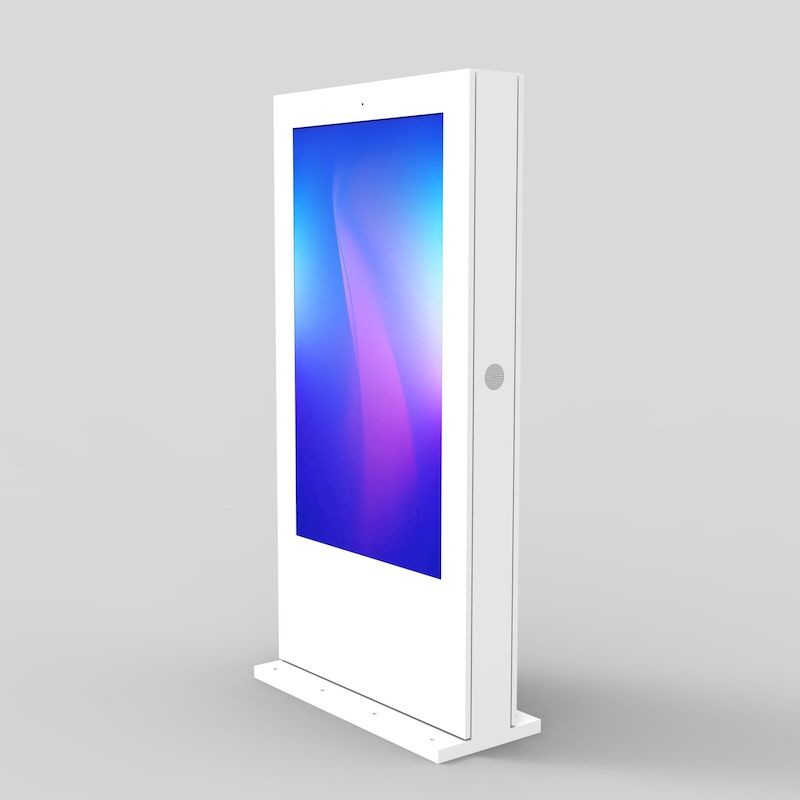

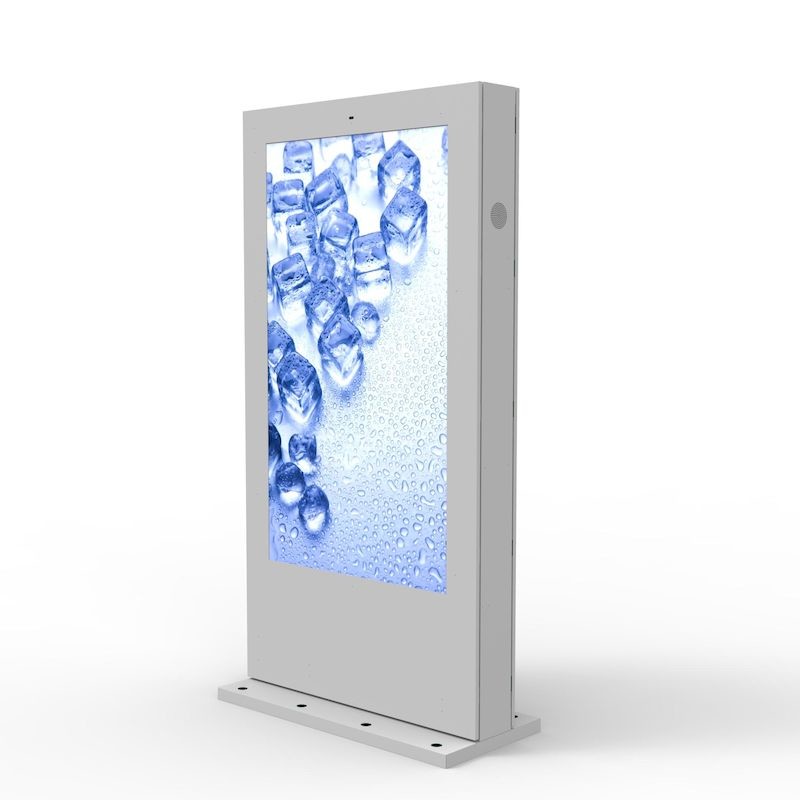

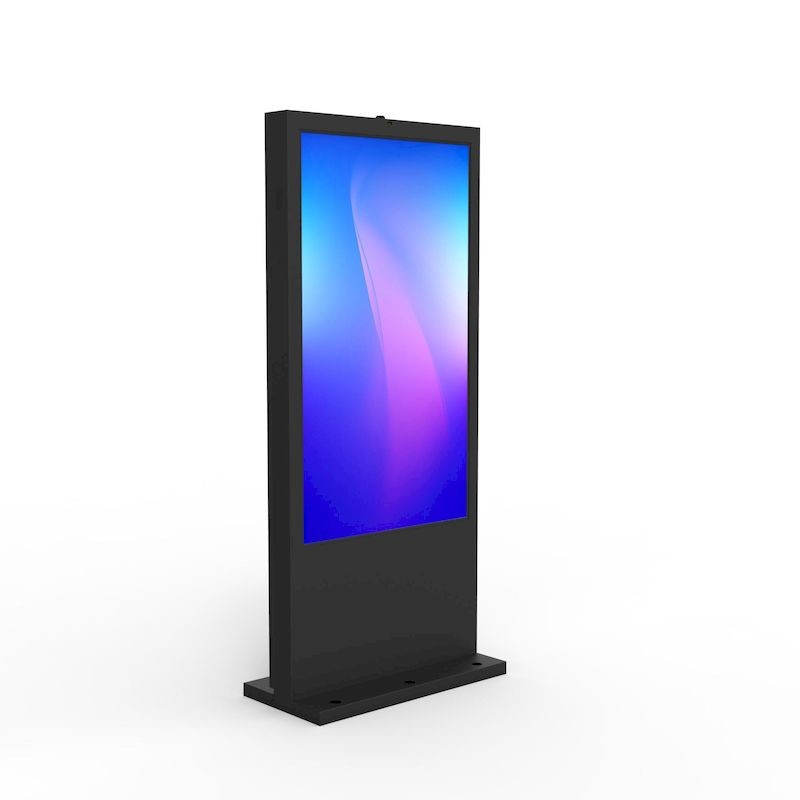

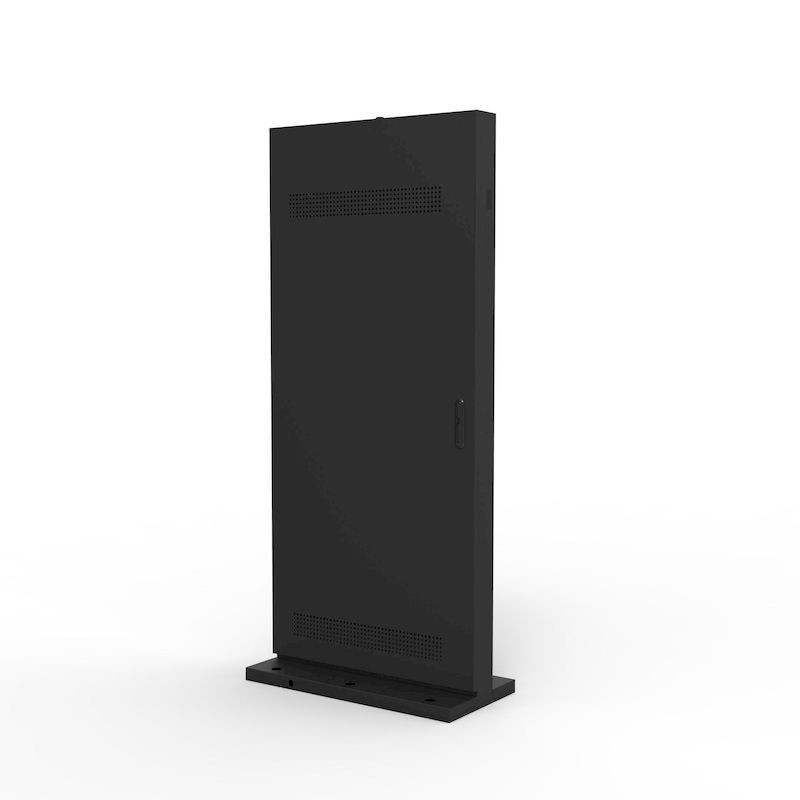

Ip55 Waterproof Outdoor Digital Signage , Floor Stand Advertising Lcd Touch Kiosk
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Outdoor Digital Signage Ip55 Waterproof Touch Kiosk Floor Stand Advertising Lcd Display | Screen Panel | D-LED / IPS Panel |
|---|---|---|---|
| Display Ratio | 16:9 | Resolution | 1920*1080 |
| Contrast Ratio | 1200:1 | Protection Grade | IP55 / IP65 / IP66 (option) |
| Shell Case | 1.5mm SGCC Galvanized Steel Sheet, The Inner Layer Is Sprayed With Zinc-rich Primer, And The Surface Is Sprayed With Aksu Outdoor Plastic Powder For Protection, Lifetime>10years. | Electronic Control System | Leakage Protection,Timing Power Supply,Brightness Control,Lightning Protection |
| High Light | Ip55 Waterproof Outdoor Digital Signage,CE Lcd Touch Kiosk,1.5mm Lcd Touch Kiosk |
||
Product Description
Outdoor Digital Signage Ip55 Waterproof Touch Kiosk Floor Stand Advertising Lcd Display
The waterproof digital signage is widely used for outdoor advertising, wayfinds, self-services,guidance...etc
Specification of Digital Signage for Advertising
| Screen Panel | Size | 32“ | 43" | 49" | 55" | 65" | 75" |
| Screen Panel | D-LED / IPS Panel | D-LED / IPS Panel | D-LED / IPS Panel | D-LED / IPS Panel | D-LED / IPS Panel | D-LED / IPS Panel | |
| Display Area | 697*392mm | 941*530mm | 1074*604mm | 1209*680mm | 1428*803mm | 1650*928mm | |
| Display Ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | |
| Resolution | 1920*1080 | 1920*1080P | 1920*1080 | 1920*1080 | 1920*1080 | 3840*2160 4K | |
| Brightness | 1500cd/m² | 2000 cd/m² | 2000 cd/m² | 2000 cd/m² | 2000 cd/m² | 2000 cd/m² | |
| Contrast Ratio | 1200:1 | 1200:1 | 1200:1 | 1400:1 | 1400:1 | 1200:1 | |
| Viewing Angle | 178 ° (H)l / 178 °(V) | 178 ° (H)l / 178 °(V) | 178 ° (H)l / 178 °(V) | 178 ° (H)l / 178 °(V) | 178 ° (H)l / 178 °(V) | 178 ° (H)l / 178 °(V) | |
| Touchscreen (opton ) | Touch techology | Nano-touch, 10-point touch, touch deviation ≤ 2mm, power consumption 1.5W, drive-free, light transmittance over 93%, transmission method USB2.0 | |||||
| Android LAN Solutions (Default) | Android board | Mainboard #RK3288, CPU 64-bit 4 cores, 1.5GHZ, 2GB DDR and 8GB eMMC | |||||
| Internet | 1*10/100M Ethernet ; RJ45 | ||||||
| WIFI | Wi-Fi with antenna, 802.11 1x1 BGN+BT | ||||||
| Interfaces | USB2.0 X2,RJ45 X1 | ||||||
| PC Solutions (option ) | Driver board | X86 mainboard which could be built-in PC | |||||
| PC Configuration | Usually Intel I3 /I5 CPU, 4G memory, 128G SSD, Wi-Fi (Options: Chipset Intel HM76/ H81/H110 ) | ||||||
| PC Board I/O | USB*4, HDMI*1, VGA*1, RJ45*1. ,RS232*1, MIC*1 | ||||||
| Product Appearance | Shell Case | 1.5mm SGCC galvanized steel sheet, The inner layer is sprayed with zinc-rich primer, and the surface is sprayed with Aksu outdoor plastic powder for protection, Lifetime>10years. | |||||
| Protection Grade | IP55 / IP65 / IP66 (option); the high-efficiency multi-layer filtration system prevents harmful dust from entering the machine | ||||||
| Tempered glass | 6mm tempered glass, when the glass is damaged by external force, the fragments will form obtuse-angled small particles similar to honeycomb, which is not easy to cause serious harm to the human body. The impact/bending strength & of tempered glass is 3 to 5 times that of ordinary glass | ||||||
| Color | Black / White (customized) | ||||||
| Power On/Off | Industrial levels of the switching power supply | ||||||
| Speaker | Waterproof speaker ; 2x10W | ||||||
| Electronic Control System | Leakage Protection | Leakage protection switch, leakage protection, overcurrent and overvoltage protection. | |||||
| Timing Power Supply | Microcomputer timing switch, timing control machine start and stop in different time periods. | ||||||
| Brightness Control | Automatic sensitive probe - automatic recognition of surrounding environment, automatic adjustment of screen brightness | ||||||
| Lightning Protection | level Lightning protection device, lightning protection level C, to prevent instantaneous lightning strikes. | ||||||
| Temperature Control System | Cooling System | Intelligent fan integrated temperature control, Axial flow fan, matching fan speed control board, automatic temperature sensing, automatic adjustment of fan speed support-10°C ~50°C outdoor environment, | |||||
| Air-conditioner | (Option) Intelligent Air-conditioner Control System - heat/cooling automatically, support -45°C ~75°C outdoor environment working | ||||||
Advantages:
1. Display module
(1) It adopts industrial-grade high-reliability modular design, which is simple and convenient to maintain, and has complete protection measures.
(2) High resolution, high contrast, high brightness, better express the details.
(3) Automatically eliminating afterimages, anti-ultraviolet, heat insulation against sunlight, automatic light-sensing green energy-saving protection for long-term use of the LCD screen.
(4) Black level extension and self-adaptation, which can enhance the depth of the image.
(5) Adopting industrial-grade LCD screen, the video image is brighter and the three-dimensional effect is stronger.
(6) 16.7M colors, the picture is more natural, and the delicate picture is truly free of tailing.
(7) Intelligent temperature control, environmental protection and quietness, high reliability and good stability, especially suitable for working in harsh environments.
(8) Ultra-long life, 7*24 hours of uninterrupted work, up to 60,000 hours or more.
2. Electrical parameters
(1) The shell material is all galvanized steel cabinet, the outer surface is imported metal paint, anti-magnetic, anti-static, imported waterproof material, the whole machine adopts IP55 waterproof, outdoor all-weather waterproof and dustproof, anti-theft, explosion-proof and other designs.
(2) Highly reliable electrical protection: leakage, overload, overvoltage protection, lightning protection device, over-temperature protection, etc.
(3) Audio: Dual-channel, stereo surround power amplifier system - 8 ohms and 2×10W.
(4) The working environment temperature design standard is +50°~-30°, and high-quality combined fans are used for cooling.
(5) Protective glass: 6-8mm tempered explosion-proof glass is used.
(6) Each system of the whole machine adopts the principle of modular design, sustainable and maintainable design.
(8) Light sensing and overheating protection system: The screen backlight adopts automatic ambient light sensing, real-time adjustment of the screen brightness can meet the clear image display under strong direct sunlight environment, and make the screen clear and no energy waste at night.
