Overlay Kits IR Multi Touch Frame 4096x4096 Aluminum Alloy
| Place of Origin | GUANG DONG, CHINA |
|---|---|
| Brand Name | ITATOUCH |
| Certification | CE, FCC, ROHS, ISO |
| Model Number | IR Frame |
| Minimum Order Quantity | 1Pieces |
| Price | USD49.00 ~ USD390.00 / Pieces |
| Packaging Details | Carton box |
| Delivery Time | 5~15 working days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 5000pieces/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Infrared Multi Touch Frame IR Overlay Kits 4096*4096 Aluminum Alloy Frame | Technology | Infrared Multi Touch Screen Overlay Kits |
|---|---|---|---|
| Frame Size | 32", 43", 50", 55'',65",,75", 85", 96", 98", 110", 120" | Software | Free Whtieboard Software For School Classroom Education |
| Touch Points | 10/40 Touch Points Finger Touch Or Pen Touch,Infrared Touch | Material | Aluminum Alloy Frame, USB Cable |
| Interface Type | USB,Serial | Resolution | 4096*4096 |
| Operating System | Compatiable With WIN7/10,Android | Application | Indoor,Teaching & Meeting,Koisk,Information,ATM |
| High Light | 32" IR Multi Touch Frame,4096x4096 IR Multi Touch Frame,Aluminum Alloy Infrared Touch Screen |
||
Product Description

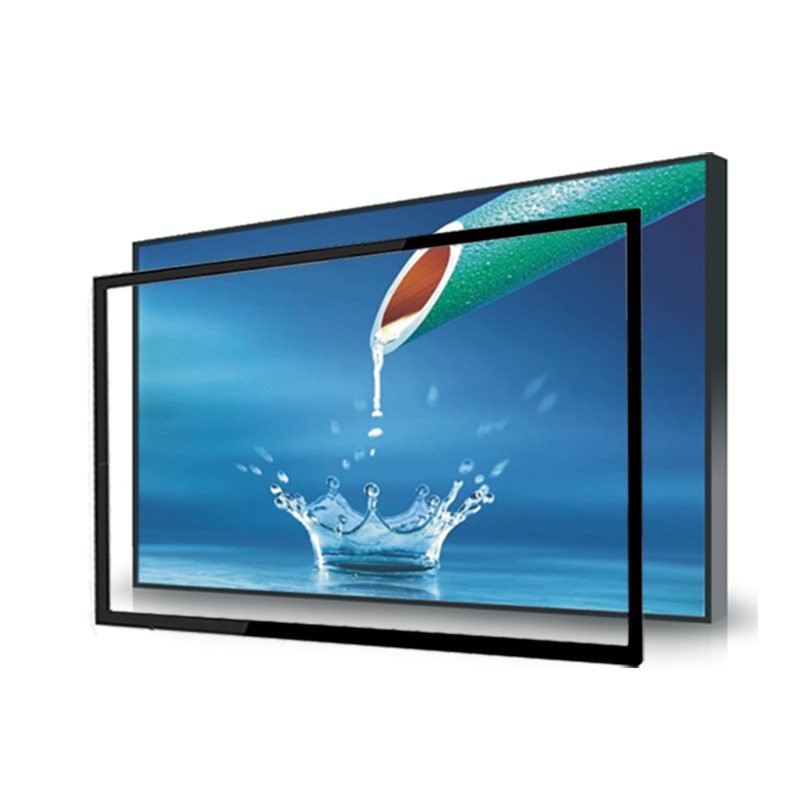

Infrared Multi Touch Frame IR Overlay Kits 4096*4096 Aluminum Alloy Frame
Multi Infrared Touch Frame Features:
- 9th generation infrared multi-touch technology
- High-density infrared light tube integrated PCB, the touch sensor is accurate and smooth 3mm/1.5mm writing.
- Support multiple user 10~20points touch
- Size: 32", 43", 49"/50", 55". 65", 75", 85"/86", 98", 110", 120", 125" ...
- USB / Series data cable
- Tempered glass option if needed.
PCBS / CUSTOMIZED SUPPORT
Usually, the default of Interactive touch screen frame kits has 10points touch sensors, which means 10 users could write at the same time. Widely for education and business application.
PRDOUCT SPECIFICATIONS:
Infrared SKD Touch Screen Overlay Kits
hardware Special Features | Gesture recognition |
Technology | Infrared |
Touch Point | 10 touch |
Cursor Speed | 220 dot/s |
Display ratio | 4:3 16:10 |
Resolution | 32768 x 32768 |
Positioning Accuracy | <2mm |
Connecting Port | USB 2.0 USB 1.1 USB 3.0 |
View Angle | Horizontal 170°, vertical 160° |
Operating System | Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8.1,Windows 10, Linux, Mac, Android |
Power Supply | USB power supply DC 4.6V- 5.0V <1W ( 100mA at 5V) |
Working Condition | Indoor or Outdoor |
Storage | Temperature: -30°C~60°C Humidity: 0%~95% |
Operation | Temperature: -10°C~45°C Humidity: 10%~90% |
Installation | Wall mounted, cabinets, mobile stand (optional) |
PRODUCT DETAILS:
Full Sizes options: 32", 43", 46". 50", 55", 65", 70", 75", 80". 86", 98", 110", 120", ... 150"
or MORE LARGE SIZES, CUSTOMIZED.

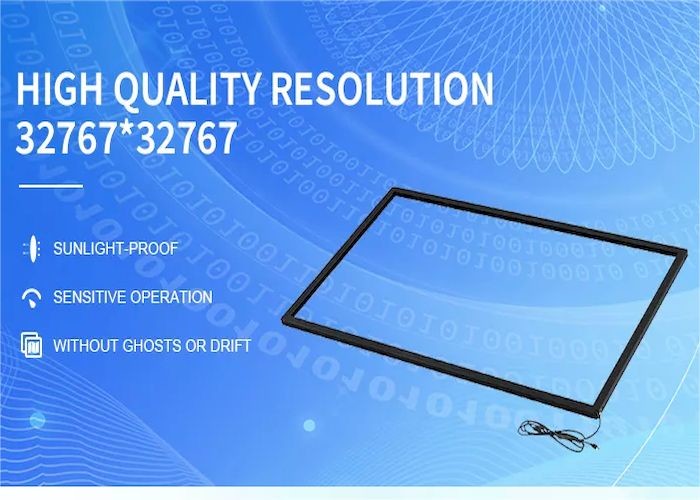

High Resolution 32767 * 32767
It is Free Driver for Windows OS, Android OS. Intelligence Gesture Recognize, include zoom in /out ... etc.
Whiteboard software for Windows OS opton if need.

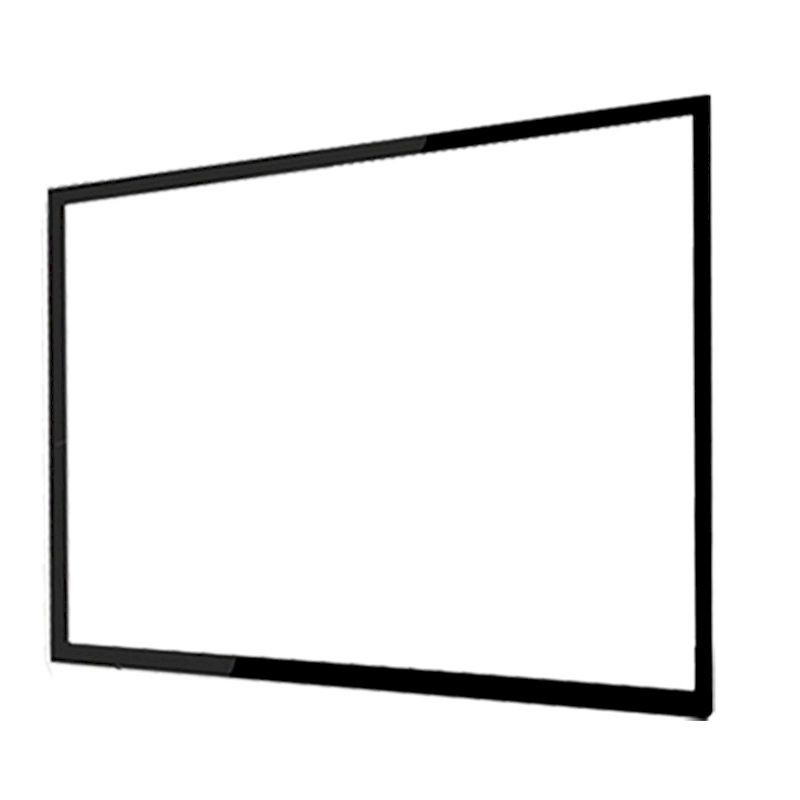

The PCB board has infrared LED tube light, USB interfaces, aluminum alloy frame
Infrared 10point, 20point, 32point touch option.
Infrared 10point, 20point, 32point touch option.
| | | |
Installation Instruction of Infrared SKD touch screen frame for tv monitors
| |
| High accurate infrared IR LED beads | full sizes of infrared touch frame |
1. SAMPLES (<5pcs) of Infrared touch screen frame, to save shipment cost, willl send the un-assembled one if clients required. and clearly mark A, B, C, D on each side corner, user can assemble it per the marks one by one.
2. BULKS (>10pcs) , we will offer the assembled oen of IR frame panel for our clients, packed it by carton. clients can directly use it after received.
| Acessories of IR Touch Frame |
Each frame will be tested before packing
WHY ITATOUCH IS A RELIABLE AND TRUSTWORTHY SUPPLIER?
1). Verified supplier by SGS Certification.
2). Offer patiently & various services - Brand, OEM | ODM | CUSTOMIZED.
3). Small MOQ 1pcs, Direct Factory Prices.
4). Quality complies with CE, FCC, ROHS, ISO certificates.
5). Our products and service have been gotten " Good | Very Good " reviews by above 99% of clients from more than 30 countries and areas.
